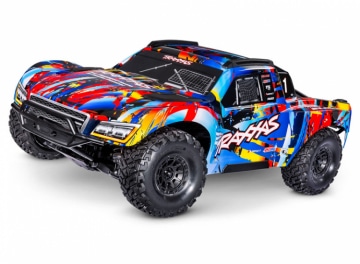

Traxxas 102076-4-RNR – Maxx Slash 6s Short Course Truck – Rock’n’Roll

6s Power
Maxx Slash punches harder and faster with brutal 6s power and 112+kph speed. Low center of gravity and new belted tires keep it all in control.

Maxx-Sized Slash
Being big is good. Being the perfect size for maximum performance is best. Maxx Slash is the perfect size to power aggressively over the roughest terrain imaginable, yet it is still feels light, responsive, and agile.

Maxx Strength
The Maxx platform has already proven it’s synonymous with durability. The engineering on Maxx Slash continues to innovate, adding even more strength for critical 6s power handling and faster, harder-hitting action.

Belted Tires
Maxx SC belted tires limit high-speed tire expansion for a larger, flatter contact patch and game-changing precision and control. Tire uniformity is critical for stability, especially at the top of its 112+ kph speed range.

Specs:

• Length: 674mm
• Width: 363mm
• Ground Clearance: 39mm
• Weight (no battery): 5.34kg
• Height (overall): 245mm
• Wheelbase: 394mm
• Shock Length (front): 124mm
• Shock Length (rear): 124mm
• Tire Diameter: 134mm
• Wheel Diameter: 2.2/3.2″ (56x81mm)
• Speed Control: Velineon® VXL-6s
• Motor (electric): Velineon® 2000 kV Brushless
• Overall Drive Ratio: 11.38:1 (25/50 motor pinion and spur gear)
• Differential Type: Sealed, hardened steel bevel, limited slip
• Gear Pitch: Module 1.0
• Chassis Structure/Material: Hex-reinforced nylon composite
• Brake Type: Electronic
• Drive System: Shaft-driven 4WD
• Steering: Double-shear bellcrank
• Wheels & Tires: Dual-profile SCT wheels with Maxx SC belted tires & foam inserts
• Radio System: 2-Channel, TQi™ 2.4 GHz Transmitter with TSM® receiver
• Servo: 2090 Waterproof (285 oz-in torque)
• Top Speed: 112+ kph with two 3s LiPo batteries and optional gearing (sold separately)
• Skill Level: 4
• Battery Tray: L181xW56xH45mm
• Required Transmitter Batteries: 4 “AA”
• Required Vehicle Batteries: 4-6S LiPo (one 4S or two 3S with iD™ connector)
• Required Transmitter Charger: Traxxas iD™

Velineon 2000kV Motor Specs:

• Type: 2000kV sensorless brushless
• Weight: 406g
• Length: 76mm
• Diameter: 42mm
• Connector Type: Traxxas 6.5 mm bullet connectors

VXL-6S ESC Specs:

• Input Voltage (cells): 4–6s LiPo (max: 25.2 volts)
• Case Size: 58x72x46mm
• Weight: 207g
• BEC Voltage: 6.0volts
• BEC Current Continuous: 10amps
• BEC Current Peak: 20amps
• Reverse Delay: Yes, with lockout
• Ports: RX input, auxiliary fan, Traxxas accessory port

What’s In The Box:

• Maxx Slash, Ready-To-Race short course truck with Traxxas 2000 kV brushless motor
• VXL-6s waterproof electronic speed control with integrated telemetry
• Quick Start Guide
• TQi 2.4 GHz radio system
• High quality maintenance tools
• Jumper plug (for 4s battery use)

What You’ll Need:

• LiPo Batteries: Traxxas recommends dual 5000 mAh 3-cell 11.1 V Power Cell LiPo batteries for maximum performance. Dual 7600 mAh 7.4 V LiPo batteries or a single 6700 mAh 14.8 V LiPo battery will operate the vehicle with reduced performance. NiMH batteries are not supported.
• LiPo Balance Charger with iD™: Traxxas EZ-Peak® Live 4s-capable charger is recommended for easy and fast charging performance (model 2971).
• AA Alkaline Batteries: Four AA alkaline batteries for the transmitter.
